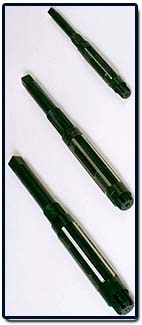

Adjustable Hand Reamer |
| Code |
Range |
No. of blades |
Size |
| |
Inch |
MM |
|
|
| RADR/8A |
1/4 to 9/32 |
6.35 to 7.14 |
4 |
8/A |
| RADR/7A |
9/32 to 5/16 |
7.14 to 7.94 |
4 |
7/A |
| RADR/6A |
5/16 to 5/32 |
7.94 to 8.73 |
4 |
6/A |
| RADR/5A |
11/32 to 3/8 |
8.73 to 9.52 |
5 |
5/A |
| RADR/4A |
3/8 to 13/32 |
9.52 to 10.32 |
6 |
4/A |
| RADR/3A |
13/32 to 7/16 |
10.32 to 11.11 |
6 |
3/A |
| RADR/2A |
7/16 to 15/32 |
11.11 to 11.91 |
6 |
2/A |
| RADR/A |
15/32 to 17/32 |
11.91 to 13.49 |
6 |
A |
| RADR/B |
17/32 to 19/32 |
13.49 to 15.08 |
6 |
B |
| RADR/C |
19/32 to 21/32 |
15.08 to 16.67 |
6 |
C |
| RADR/D |
21/32 to 23/32 |
16.67 to 18.26 |
6 |
D |
| RADR/E |
23/32 to 25/32 |
18.26 to 19.84 |
6 |
E |
| RADR/F |
25/32 to 27/32 |
19.84 to 21.43 |
6 |
F |
| RADR/G |
27/32 to 15/16 |
21.43 to 23.81 |
6 |
G |
| RADR/H |
15/16 to 1-1/16 |
23.81 to 26.99 |
6 |
H |
| RADR/I |
1-1/16 to 13/16 |
26.99 to 30.16 |
6 |
I |
| RADR/J |
1-3/16 to 1-11/32 |
30.16 to 34.13 |
6 |
J |
| RADR/K |
1-11/32 to 1-1/2 |
34.13 to 38.10 |
6 |
K |
| RADR/L |
1-1/2 to 1-13/16 |
38.10 to 46.04 |
6 |
L |
| RADR/M |
1-13/16 to 2-7/32 |
46.04 to 56.36 |
6 |
M |
| RADR/N |
2-7/32 to 2-3/4 |
56.36 to 69.85 |
6 |
N |
| RADR/O |
2-3/4 to 3-11/32 |
69.85 to 84.93 |
6 |
O |
|
- Used for light cut, repair work, removing stock & enlarging holes
- Can be hand operated with the help of wrenches
- Size can be adjusted by moving the blades in trapped slots
- Also available with pilots
- Sizes clearly marked on each piece
|
| Prod. No. 261 |
 |
 |
| |
|
