Boring Heads and Shanks »

Back

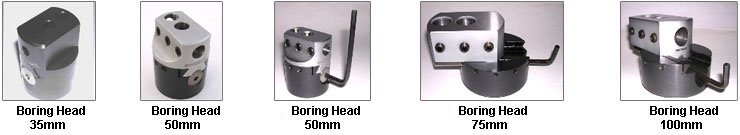

Boring Heads Specifications

					Centre Distance	Slide Radial
Code	Head Dia	Overall	Bore Dia.	Cross Bore	Between Bores	Travel Max.	Min.Bore	Max.Bore	Mounting Thread	Net Weight
	MM	Length MM	MM	Dia. MM	MM	MM	MM	MM	(for Shanks)	KGS.
RBH/30	30	53	6	6	8.5	12	6	45	M12 X 1	0.250
RBH/35	35	53	6	6	11.5	14	8	60	M12 X 1	0.325
RBH/35A	35	53	8	8	13.5	14	8	70	M12 X 1	0.325
RBH/45	45	58	10	10	15.0	16	10	80	M14 X 1	0.625
RBH/50	50	63	10	10	15.6	19	10	100	7/8" X 20 TPI	0.700
RBH/50A	50	63	12	12	16.0	19	10	100	1.1/2" X 18 TPI	0.700
RBH/75	75	81	19	19	25.0	32	10	220	1.1/2" X 18 TPI	2.000
RBH/100	100	95	25	25	32.0	38	12	350	1.1/2" X 18 TPI	4.000
RBH/63	63	80	12	12	19.0	19	8	350	w/integrated R8 Shk.	2.000
RBH/63A	63	80	16	16	19.0	1	10	125	w/integrated R8 Shk.	2.000

Our Boring Heads are made of Alloy Steel Hardened and precision Ground. They are versatile and can be used any machine shopfloor. Can be used for making heavy roughing cuts and accurate finishing cuts.

Different threads are available for use with different shanks with threads and the Bore for clamping the Boring
tool is also available in many diameters depending on the size of Bore. Screws are hardened and precision for accurate reading and Heads are Hard Chromed for extra life.
