Thread Repairing Tools »

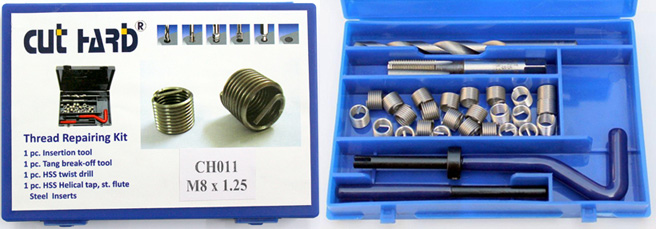

Helical Steel Inserts and Thread-Repairing Kits – in boxed sets |
| Cuthard Article Number |
HSS Helical Tap |
HSS Twist Drill |
Insertion Tool |
Break-off Tang |
Inserts |
| CH002 |
M 2 x 0.4 |
2.1 mm |
No. 2 |
No. 2 |
25 |
| CH003 |
M 2.5 x 0.45 |
2.6 mm |
No. 3 |
No. 3 |
25 |
| CH004 |
M 3 x 0.5 |
3.2 mm |
No. 4 |
No. 4 |
25 |
| CH005 |
M 3.5 x 0.6 |
3.7 mm |
No. 5 |
No. 5 |
25 |
| CH006 |
M 4 x 0.7 |
4.2 mm |
No. 6 |
No. 6 |
25 |
| CH008 |
M 5 x 0.8 |
5.2 mm |
No. 8 |
No. 8 |
25 |
| CH009 |
M 6 x 1.0 |
6.3 mm |
No. 9 |
No. 9 |
25 |
| CH0010 |
M 7 x 1.0 |
7.3 mm |
No. 10 |
No. 11 |
25 |
| CH0011 |
M 8 x 1.25 |
8.3 mm |
No. 11 |
No. 11 |
25 |
| CH0011A |
M 8 x 1.0 |
8.3 mm |
No. 11 |
No. 11 |
25 |
| CH012 |
M 9 x 1.25 |
9.3 mm |
No. 12 |
No. 12 |
20 |
| CH013 |
M 10 x 1.5 |
10.4 mm |
No. 13 |
No. 13 |
20 |
| CH013A |
M 10 x 1.25 |
10.3 mm |
No. 13 |
No. 13 |
20 |
| CH013B |
M 10 x 1.0 |
10.3 mm |
No. 13 |
No. 13 |
20 |
| CH014 |
M 11 x 1.5 |
11.4 mm |
No. 14 |
No. 14 |
15 |
| CH015 |
M 12 x 1.75 |
12.4 mm |
No. 15 |
No. 15 |
15 |
| CH015A |
M 12 x 1.5 |
12.4 mm |
No. 15 |
No. 15 |
15 |
| CH015B |
M 12 x 1.25 |
12.3 mm |
No. 15 |
No. 15 |
15 |
| CH015C |
M 12 x 1.0 |
12.3 mm |
No. 15 |
No. 15 |
15 |
| CH016 |
M 14 x 2.0 |
14.5 mm |
No. 16 |
N/A |
15 |
| CH016A |
M 14 x 1.5 |
14.4 mm |
No. 16 |
N/A |
15 |
| CH017 |
M 14 x 1.25 |
14.3 mm |
No. 17 |
N/A |
15 |
| CH017A |
M 14 x 1.0 |
14.3 mm |
No. 17 |
N/A |
15 |
| CH018 |
M 16 x 2.0 |
16.5 mm |
No. 18 |
N/A |
15 |
| CH018A |
M 16 x 1.5 |
16.3 mm |
No. 18 |
N/A |
15 |
| CH020 |
M 18 x 2.5 |
18.5 mm |
No. 20 |
N/A |
10 |
| CH020A |
M 18 x 2.0 |
18.5 mm |
No. 20 |
No. N/A |
10 |
| CH020B |
M 18 x 1.5 |
18.4 mm |
No. 20 |
N/A |
10 |
| CH021 |
M 20 x 2.5 |
20.5 mm |
No. 21 |
N/A |
5 |
| CH021A |
M 20 x 2.0 |
20.5 mm |
No. 21 |
N/A |
5 |
| CH021B |
M 20 x 1.5 |
20.4 mm |
No. 21 |
N/A |
5 |
| CH022 |
M 22 x 2.5 |
22.5 mm |
No. 22 |
N/A |
5 |
| CH022A |
M 22 x 2.0 |
22.4 mm |
No. 22 |
N/A |
5 |
| CH022B |
M 22 x 1.5 |
22.3 mm |
No. 22 |
N/A |
5 |
| CH023 |
M 24 x 3.0 |
|
No. 23 |
N/A |
5 |
|
| |
|
 |
|
| |
|
 |
|
